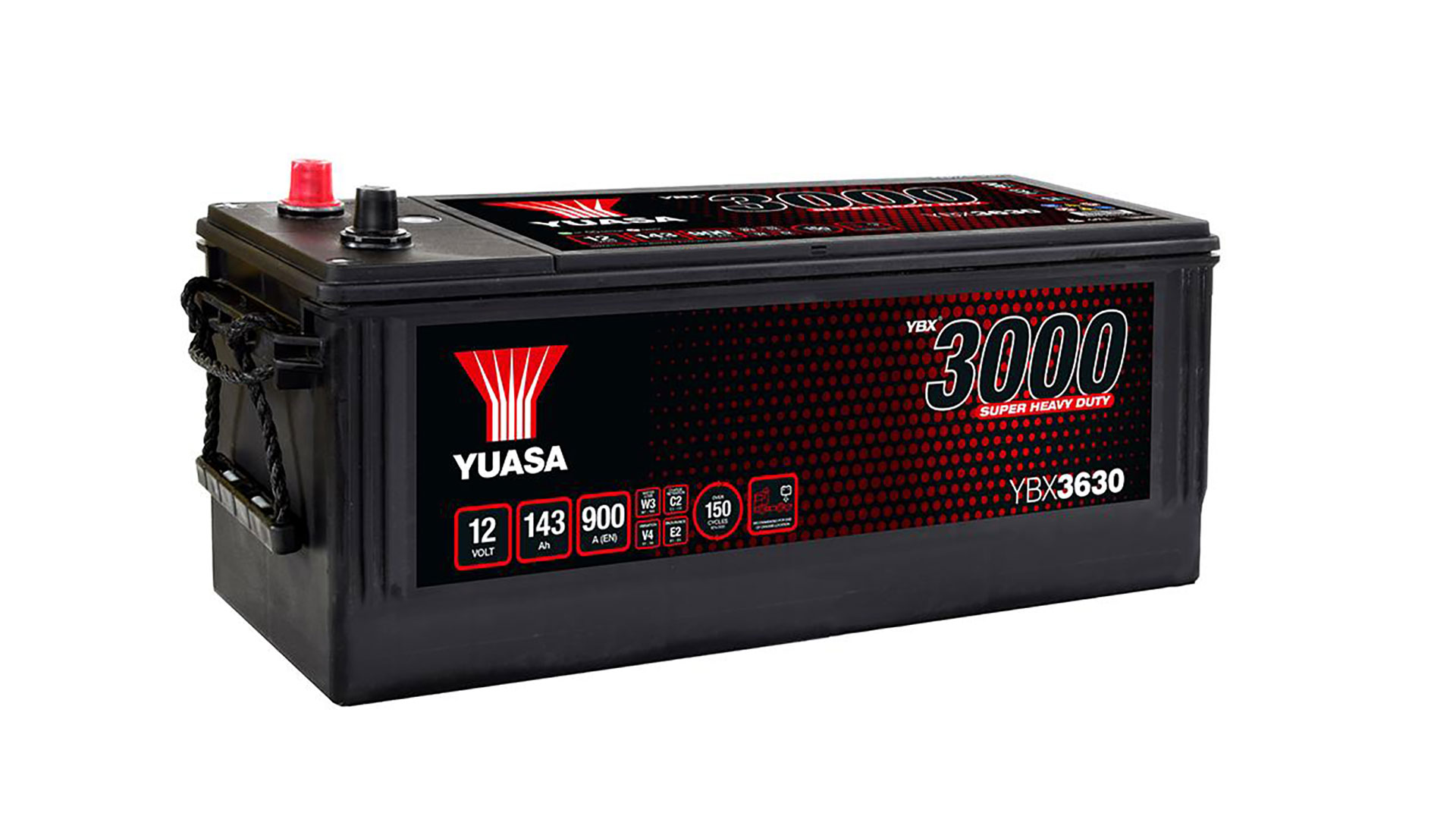

YBX3630 12V 143Ah 900A Yuasa Super Heavy Duty SMF Battery

YBX3630 12V 143Ah 900A Yuasa Super Heavy Duty SMF Battery

YBX3630 12V 143Ah 900A Yuasa Super Heavy Duty SMF Battery

YBX3630

  • Product : YBX3630 12V 143Ah 900A Yuasa Super Heavy Duty SMF Battery
  • Code : YBX3630
  • Availability : Available
  • Brand : Yuasa

Capacity at 20-hour Rate (Ah): 143
Cold Cranking Performance (Amps) EN1: 900


Designed for vehicles with standard power demands
For occasional overnight stops where hotel-loads are applied
V4 vibration resistance & are suitable for end of chassis location
E2 Endurance rating – up to 150 cycles (50% DOD)
Fully maintenance free with sealed double lid
End venting for remote exhaust of gases
Low self-discharge rate for extended shelf life


Yuasa YBX Super Heavy Duty batteries feature:

Original equipment (OE) quality, performance & specification
Specially designed & constructed for the rigours of commercial, agricultural & plant vehicle applications
Enhanced safety features including integrated flame arrestor & carrying handles

Yuasa YBX3630 - Technical parameters
Voltage (Volt) 12
Case type DIN A
Capacity Ah (20-HR) 143
Cold Cranking Performance (Amps) EN1 900
Length (mm) 513
Width (mm) 189
Height (mm) 213
Recommended Charge Rate (Amps) 7
Mean Weight with Acid (kg) 36.5
Endurance E2
Vibration V4
Water Loss W3
Charge Retention C2
Terminal Type T1
Handles Yes
End-Venting Yes
NCC Class No
